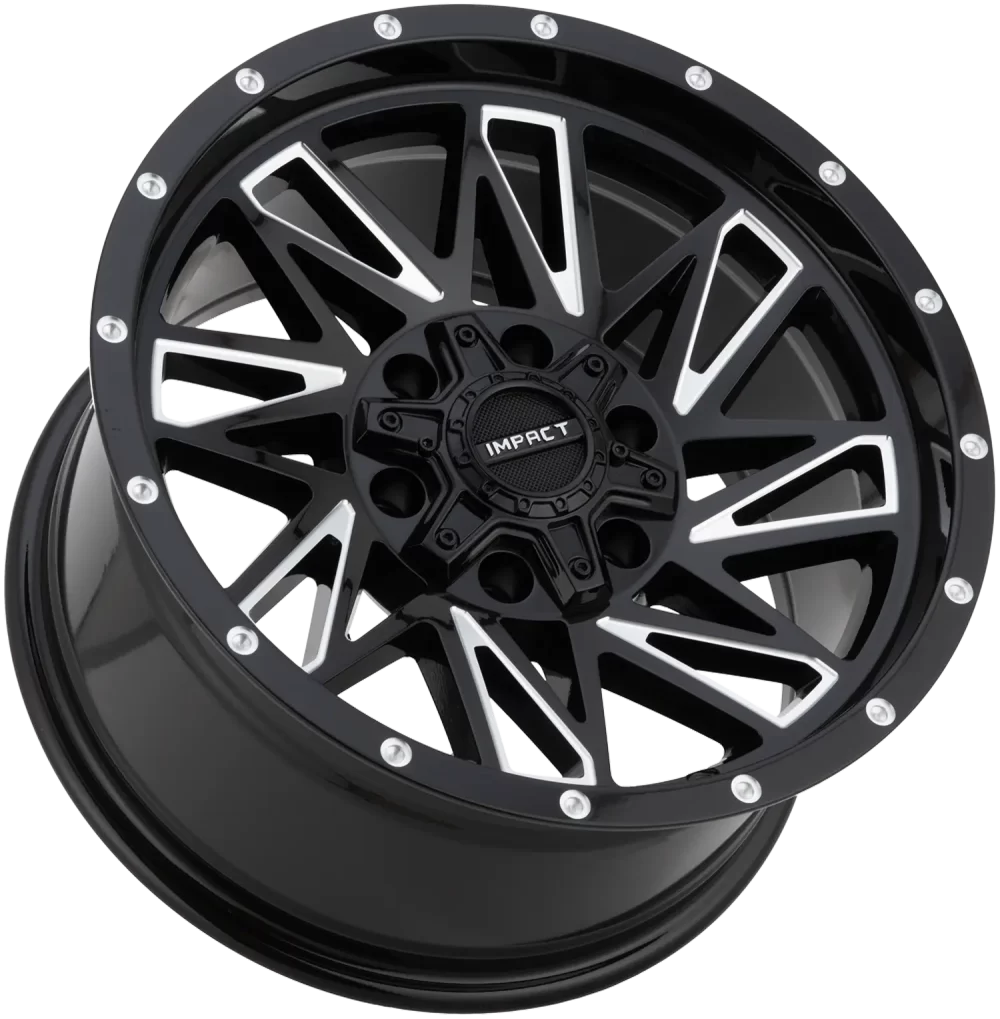

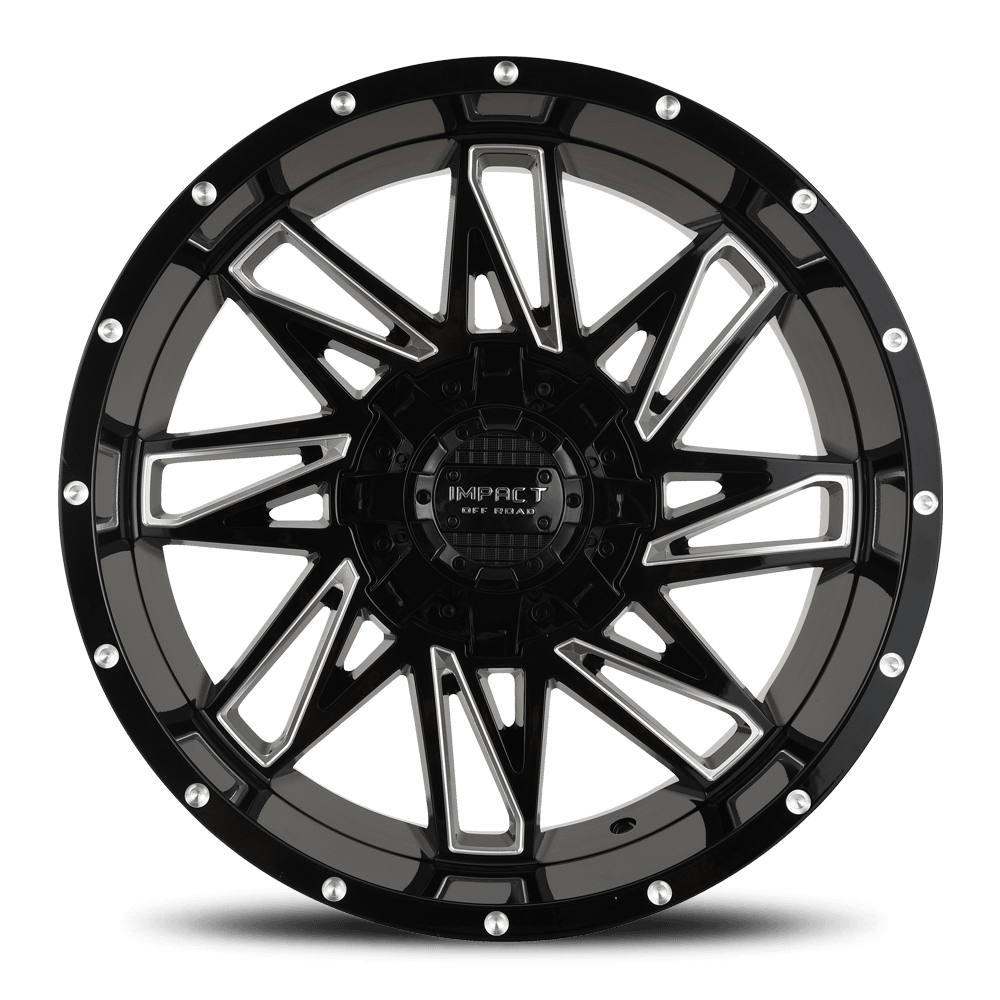

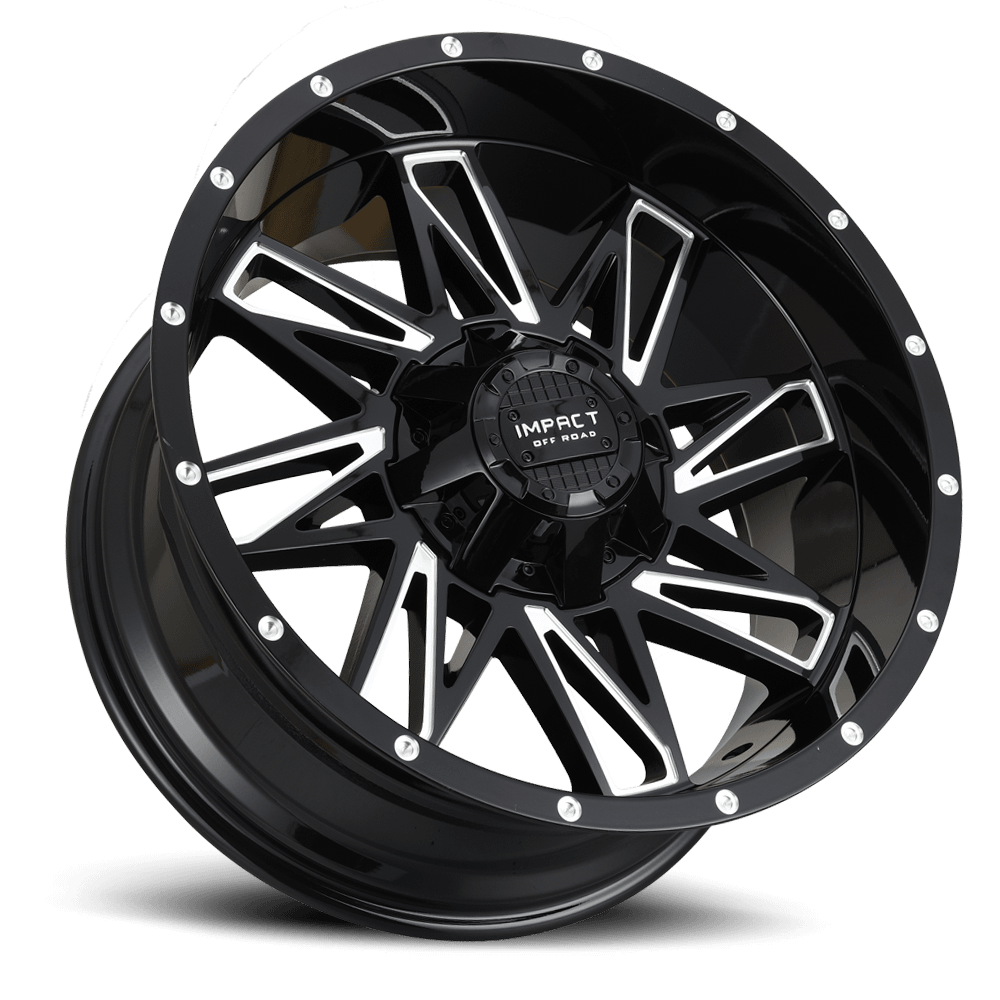

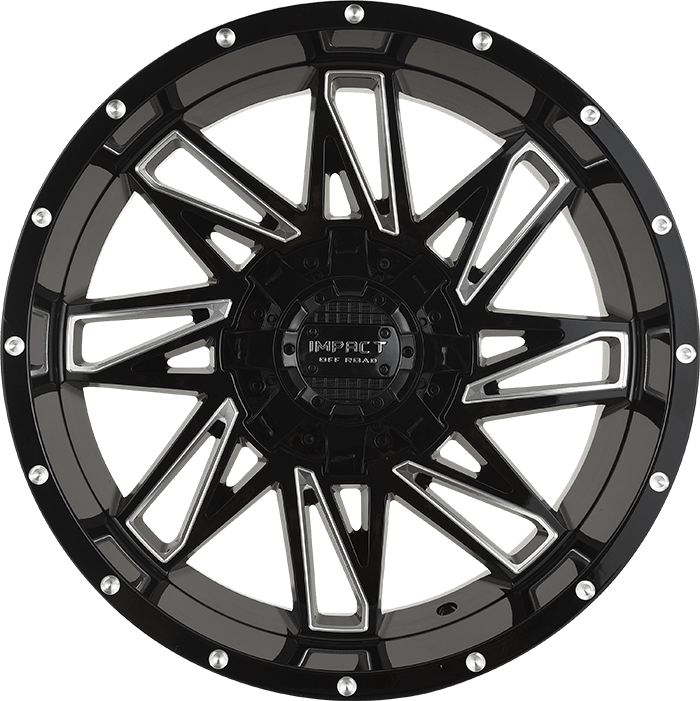

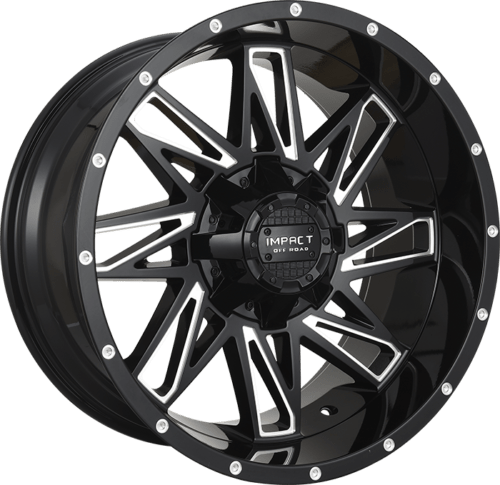

814
Finish : Gloss Black w/ Milled Windows
Available in Sizes
17″ x 9″ | 18″ x 9″ | 20″ x 9″ | 20″ x 10″ | 20″ x 12″ | 22″ x 12″
17″ x 9″ | 18″ x 9″ | 20″ x 9″ | 20″ x 10″ | 20″ x 12″ | 22″ x 12″
Bolt Patterns
5×114.3 | 5×127 | 5×139.7 | 5×150 | 6×135 | 6×139.7
5×114.3 | 5×127 | 5×139.7 | 5×150 | 6×135 | 6×139.7
Additional Finishes
Gloss Black w/ Blue Milled
Gloss Black w/ Red Milled
814 Wheel’s PART# / SPEC
| PART# | SIZE | BOLT PATTERN | OFFSET | BORE | LOAD RATING | WEIGHT | FINISH | CAP PART# |
|---|---|---|---|---|---|---|---|---|
| 814GB-201253-44 | 20" x 12" | 5x139.7 5x150 | -44 | 110.3 | 2500 | 47 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-201256-44 | 20" x 12" | 5x139.7 5x127 | -44 | 87.1 | 2500 | 47 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-201266-44 | 20" x 12" | 6x139.7 6x135 | -44 | 106.1 | 2500 | 47 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-21053-12 | 20" x 10" | 5x139.7 5x150 | -12 | 110.3 | 2500 | 40 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-21056-12 | 20" x 10" | 5x139.7 5x127 | -12 | 87.1 | 2500 | 40 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-21066-12 | 20" x 10" | 6x139.7 6x135 | -12 | 106.1 | 2500 | 40 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-221253-44 | 22" x 12" | 5x139.7 5x150 | -44 | 110.3 | 2500 | 54 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-221256-44 | 22" x 12" | 5x139.7 5x127 | -44 | 87.1 | 2500 | 54 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-221266-44 | 22" x 12" | 6x139.7 6x135 | -44 | 106.1 | 2500 | 54 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-29053-00 | 20" x 9" | 5x139.7 5x150 | 0 | 110.3 | 2500 | 39 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-29056-00 | 20" x 9" | 5x139.7 5x127 | 0 | 87.1 | 2500 | 39 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-29066-00 | 20" x 9" | 6x139.7 6x135 | 0 | 106.1 | 2500 | 39 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-79054-12 | 17" x 9" | 5x114.3 5x127 | -12 | 78.1 | 2500 | 29 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-79054-00 | 17" x 9" | 5x114.3 5x127 | 0 | 78.1 | 2500 | 29 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-79056-12 | 17" x 9" | 5x139.7 5x127 | -12 | 87.1 | 2500 | 29 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-79056-00 | 17" x 9" | 5x139.7 5x127 | 0 | 87.1 | 2500 | 29 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-79066-12 | 17" x 9" | 6x139.7 6x135 | -12 | 106.1 | 2500 | 29 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-79066-00 | 17" x 9" | 6x139.7 6x135 | 0 | 106.1 | 2500 | 29 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-89053-12 | 18" x 9" | 5x139.7 5x150 | -12 | 110.3 | 2500 | 32 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-89053-00 | 18" x 9" | 5x139.7 5x150 | 0 | 110.3 | 2500 | 32 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-89056-12 | 18" x 9" | 5x139.7 5x127 | -12 | 87.1 | 2500 | 32 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-89056-00 | 18" x 9" | 5x139.7 5x127 | 0 | 87.1 | 2500 | 32 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-89066-12 | 18" x 9" | 6x139.7 6x135 | -12 | 106.1 | 2500 | 32 | Gloss Black w/ Milled Windows | cap2 |
| 814GB-89066-00 | 18" x 9" | 6x139.7 6x135 | 0 | 106.1 | 2500 | 32 | Gloss Black w/ Milled Windows | cap2 |
| 814GBB-201253-44 | 20" x 12" | 5x139.7 5x150 | -44 | 110.3 | 2500 | 47 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-201256-44 | 20" x 12" | 5x139.7 5x127 | -44 | 87.1 | 2500 | 47 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-201266-44 | 20" x 12" | 6x139.7 6x135 | -44 | 106.1 | 2500 | 47 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-21053-12 | 20" x 10" | 5x139.7 5x150 | -12 | 110.3 | 2500 | 40 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-21056-12 | 20" x 10" | 5x139.7 5x127 | -12 | 87.1 | 2500 | 40 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-21066-12 | 20" x 10" | 6x139.7 6x135 | -12 | 106.1 | 2500 | 40 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-221253-44 | 22" x 12" | 5x139.7 5x150 | -44 | 110.3 | 2500 | 54 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-221256-44 | 22" x 12" | 5x139.7 5x127 | -44 | 87.1 | 2500 | 54 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-221266-44 | 22" x 12" | 6x139.7 6x135 | -44 | 106.1 | 2500 | 54 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-29053-00 | 20" x 9" | 5x139.7 5x150 | 0 | 110.3 | 2500 | 39 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-29056-00 | 20" x 9" | 5x139.7 5x127 | 0 | 87.1 | 2500 | 39 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-29066-00 | 20" x 9" | 6x139.7 6x135 | 0 | 106.1 | 2500 | 39 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-79054-12 | 17" x 9" | 5x114.3 5x127 | -12 | 78.1 | 2500 | 29 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-79054-00 | 17" x 9" | 5x114.3 5x127 | 0 | 78.1 | 2500 | 29 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-79056-12 | 17" x 9" | 5x139.7 5x127 | -12 | 87.1 | 2500 | 29 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-79056-00 | 17" x 9" | 5x139.7 5x127 | 0 | 87.1 | 2500 | 29 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-79066-12 | 17" x 9" | 6x139.7 6x135 | -12 | 106.1 | 2500 | 29 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-79066-00 | 17" x 9" | 6x139.7 6x135 | 0 | 106.1 | 2500 | 29 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-89053-12 | 18" x 9" | 5x139.7 5x150 | -12 | 110.3 | 2500 | 32 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-89053-00 | 18" x 9" | 5x139.7 5x150 | 0 | 110.3 | 2500 | 32 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-89056-12 | 18" x 9" | 5x139.7 5x127 | -12 | 87.1 | 2500 | 32 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-89056-00 | 18" x 9" | 5x139.7 5x127 | 0 | 87.1 | 2500 | 32 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-89066-12 | 18" x 9" | 6x139.7 6x135 | -12 | 106.1 | 2500 | 32 | Gloss Black w/ Blue Milled | cap2 |
| 814GBB-89066-00 | 18" x 9" | 6x139.7 6x135 | 0 | 106.1 | 2500 | 32 | Gloss Black w/ Blue Milled | cap2 |
| 814GBR-201253-44 | 20" x 12" | 5x139.7 5x150 | -44 | 110.3 | 2500 | 47 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-201256-44 | 20" x 12" | 5x139.7 5x127 | -44 | 87.1 | 2500 | 47 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-201266-44 | 20" x 12" | 6x139.7 6x135 | -44 | 106.1 | 2500 | 47 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-21053-12 | 20" x 10" | 5x139.7 5x150 | -12 | 110.3 | 2500 | 40 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-21056-12 | 20" x 10" | 5x139.7 5x127 | -12 | 87.1 | 2500 | 40 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-21066-12 | 20" x 10" | 6x139.7 6x135 | -12 | 106.1 | 2500 | 40 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-221253-44 | 22" x 12" | 5x139.7 5x150 | -44 | 110.3 | 2500 | 54 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-221256-44 | 22" x 12" | 5x139.7 5x127 | -44 | 87.1 | 2500 | 54 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-221266-44 | 22" x 12" | 6x139.7 6x135 | -44 | 106.1 | 2500 | 54 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-29053-00 | 20" x 9" | 5x139.7 5x150 | 0 | 110.3 | 2500 | 39 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-29056-00 | 20" x 9" | 5x139.7 5x127 | 0 | 87.1 | 2500 | 39 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-29066-00 | 20" x 9" | 6x139.7 6x135 | 0 | 106.1 | 2500 | 39 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-79054-12 | 17" x 9" | 5x114.3 5x127 | -12 | 78.1 | 2500 | 29 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-79054-00 | 17" x 9" | 5x114.3 5x127 | 0 | 78.1 | 2500 | 29 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-79056-12 | 17" x 9" | 5x139.7 5x127 | -12 | 87.1 | 2500 | 29 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-79056-00 | 17" x 9" | 5x139.7 5x127 | 0 | 87.1 | 2500 | 29 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-79066-12 | 17" x 9" | 6x139.7 6x135 | -12 | 106.1 | 2500 | 29 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-79066-00 | 17" x 9" | 6x139.7 6x135 | 0 | 106.1 | 2500 | 29 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-89053-12 | 18" x 9" | 5x139.7 5x150 | -12 | 110.3 | 2500 | 32 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-89053-00 | 18" x 9" | 5x139.7 5x150 | 0 | 110.3 | 2500 | 32 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-89056-12 | 18" x 9" | 5x139.7 5x127 | -12 | 87.1 | 2500 | 32 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-89056-00 | 18" x 9" | 5x139.7 5x127 | 0 | 87.1 | 2500 | 32 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-89066-12 | 18" x 9" | 6x139.7 6x135 | -12 | 106.1 | 2500 | 32 | Gloss Black w/ Red Milled | cap2 |
| 814GBR-89066-00 | 18" x 9" | 6x139.7 6x135 | 0 | 106.1 | 2500 | 32 | Gloss Black w/ Red Milled | cap2 |
